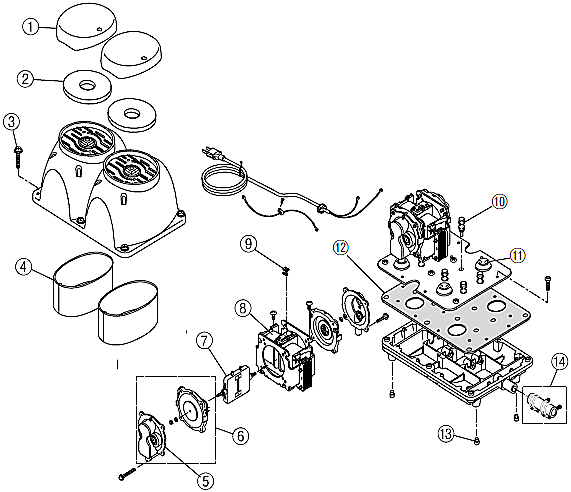

MAC150RII–300RII
*Horizontal scrolling of the table is possible on a smartphone.
|
|
Part Number |
Item Name |
150RII |
200RII |
250RII |
300RII (50 Hz) |
300RII (60 Hz) |
|
1 |
H612 |
N6 Filter cover |
― |
― |
― |
― |
― |
|
H613 |
N8 Filter cover |
✓ |
✓ |
✓ |
✓ |
✓ |
|
|
2 |
H507 |
N6 Air filter |
― |
― |
― |
― |
― |
|
H508 |
N8 Air filter |
✓ |
✓ |
✓ |
✓ |
✓ |
|
|
6 |
H150K |
N6 Diaphragm assembly (with N6 Compression chamber)* |
― |
― |
― |
― |
― |
|
H154K |
T10 Diaphragm assembly (with T10 Compression chamber)* |
✓ |
✓ |
― |
― |
― |
|
|
H156K |
T11A Diaphragm assembly (with T10 Compression chamber)* |
― |
― |
― |
― |
― |
|
|
H157K |
T30 Diaphragm assembly (with T30 Compression chamber)* |
― |
― |
✓ |
✓ |
✓ |
|
|
9 |
H256K |
N6 Auto-stop piece |
✓ |
✓ |
― |
― |
― |
|
H257 |
T30 Auto-stop piece |
― |
― |
✓ |
✓ |
✓ |
|
|
10 |
H658 |
N6 Shock absorbing rubber (4 pcs.) |
✓ |
✓ |
✓ |
✓ |
✓ |
|
11 |
H821 |
N6 Rubber grommet |
✓ |
✓ |
✓ |
✓ |
✓ |
|
12 |
H639 |
R10 Tank gasket |
― |
― |
― |
― |
― |
|
H638 |
N0 Tank gasket |
✓ |
✓ |
✓ |
✓ |
✓ |
|
|
13 |
H659 |
N6 Rubber foot (4 pcs.) |
✓ |
✓ |
✓ |
✓ |
✓ |
|
14 |
H812 |
A4 Exhaling rubber hose assembly |
― |
― |
― |
― |
― |
|
H820 |
Exhaling rubber hose assembly (⌀13 straight) |
― |
― |
― |
― |
― |
|
|
H827 |
T10 Different diameter hose assembly (for north America) |
― |
― |
― |
― |
― |
|
|
H814 |
E2 Exhaling rubber hose assembly |
✓ |
✓ |
✓ |
✓ |
✓ |
NOTE: Order 2 sets of the same parts for 1 air pump (MAC150RII–300RII).
Oscillator direction
| 150RII | 200RII |
|
Set “A” mark upward |
Set “B” mark upward |
| 250RII, 300RII(50Hz) |
300RII(60Hz) |
|
Set "〇" mark upward |
Set “△” mark upward |
